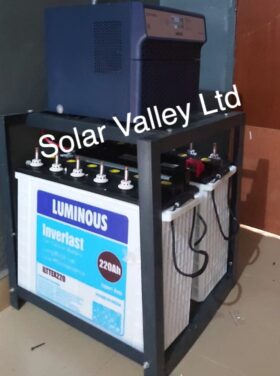

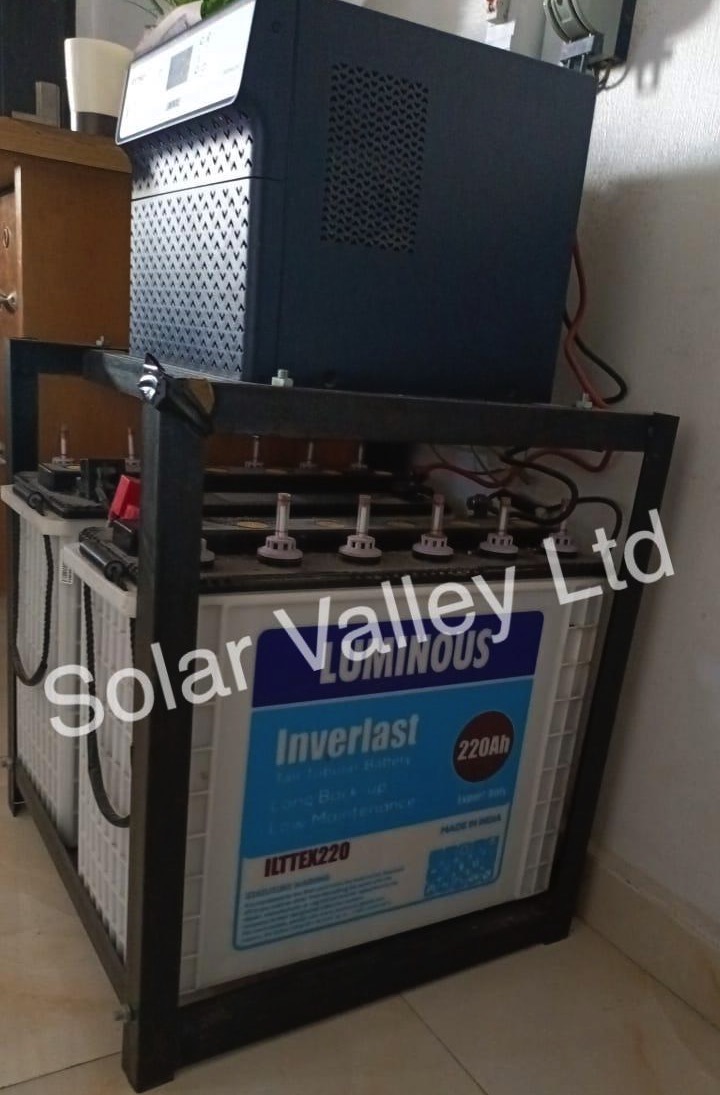

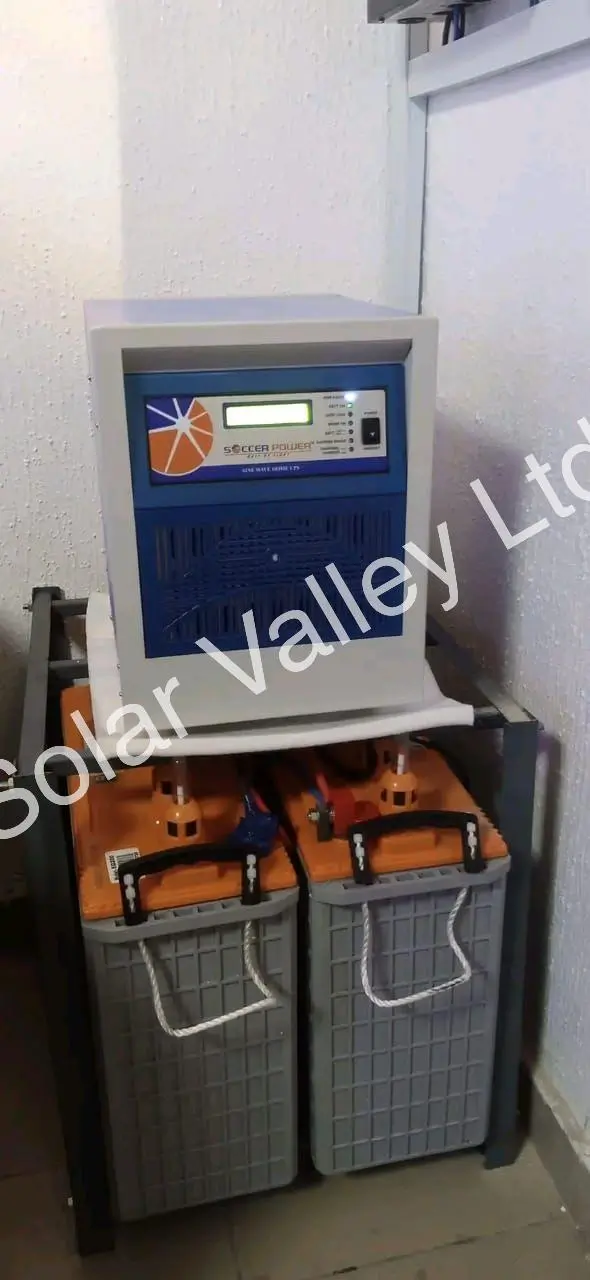

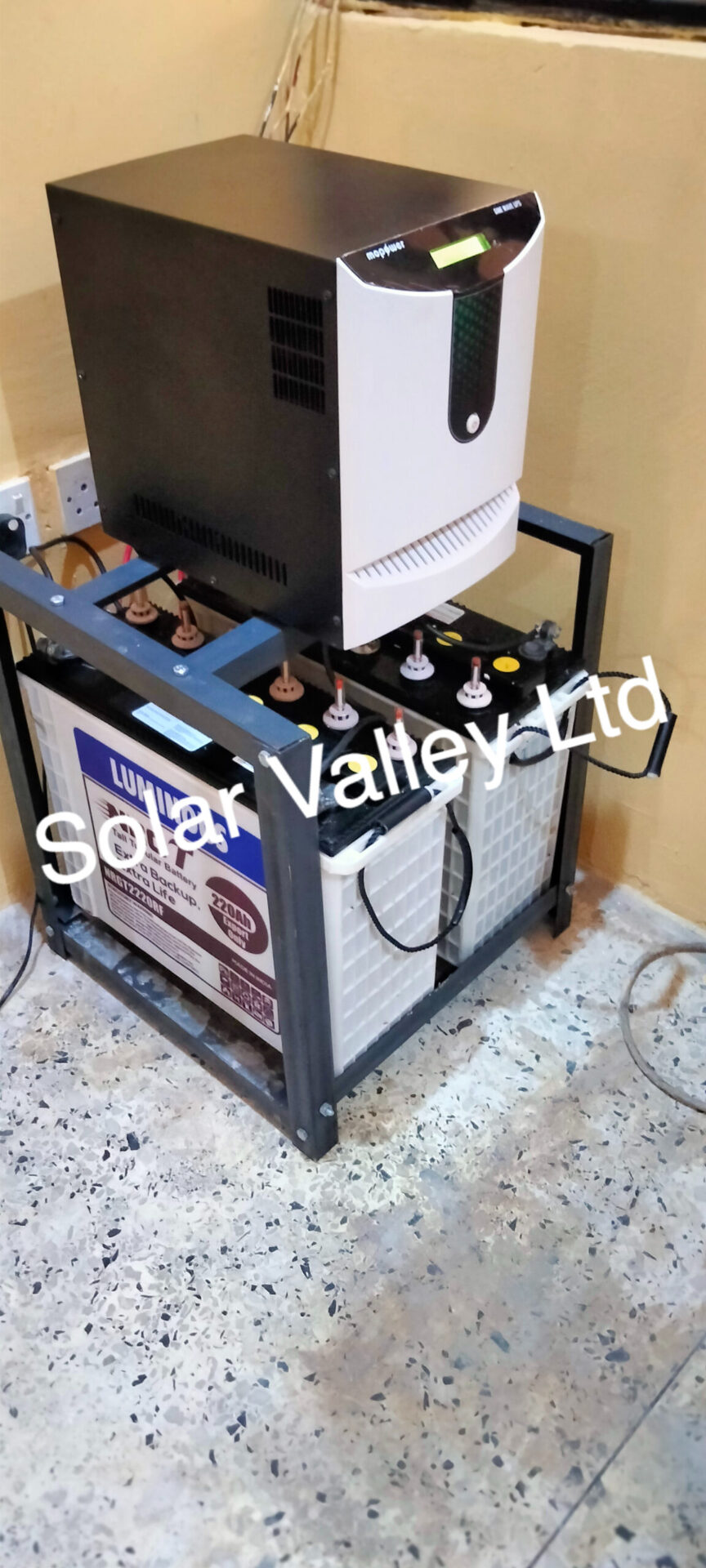

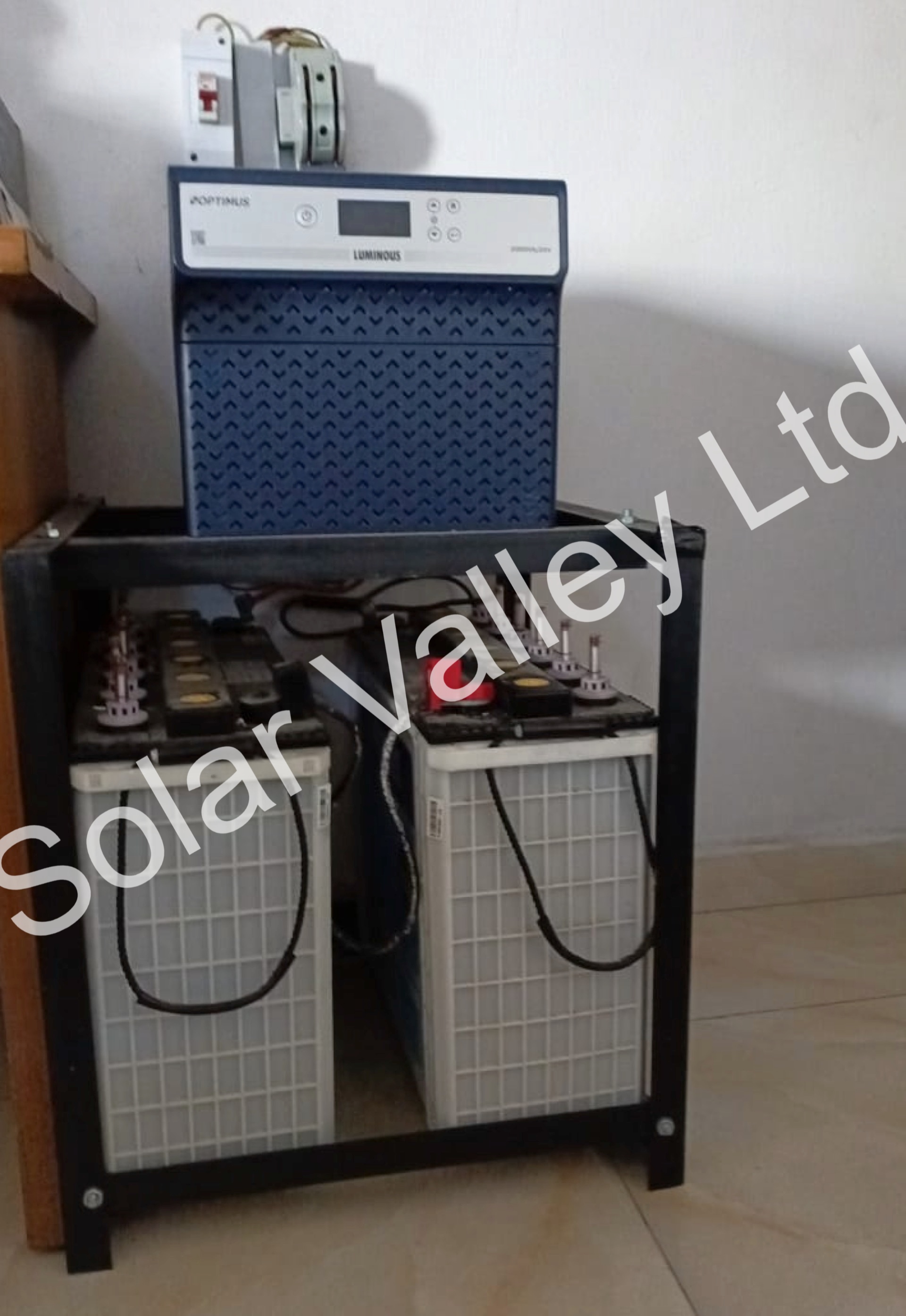

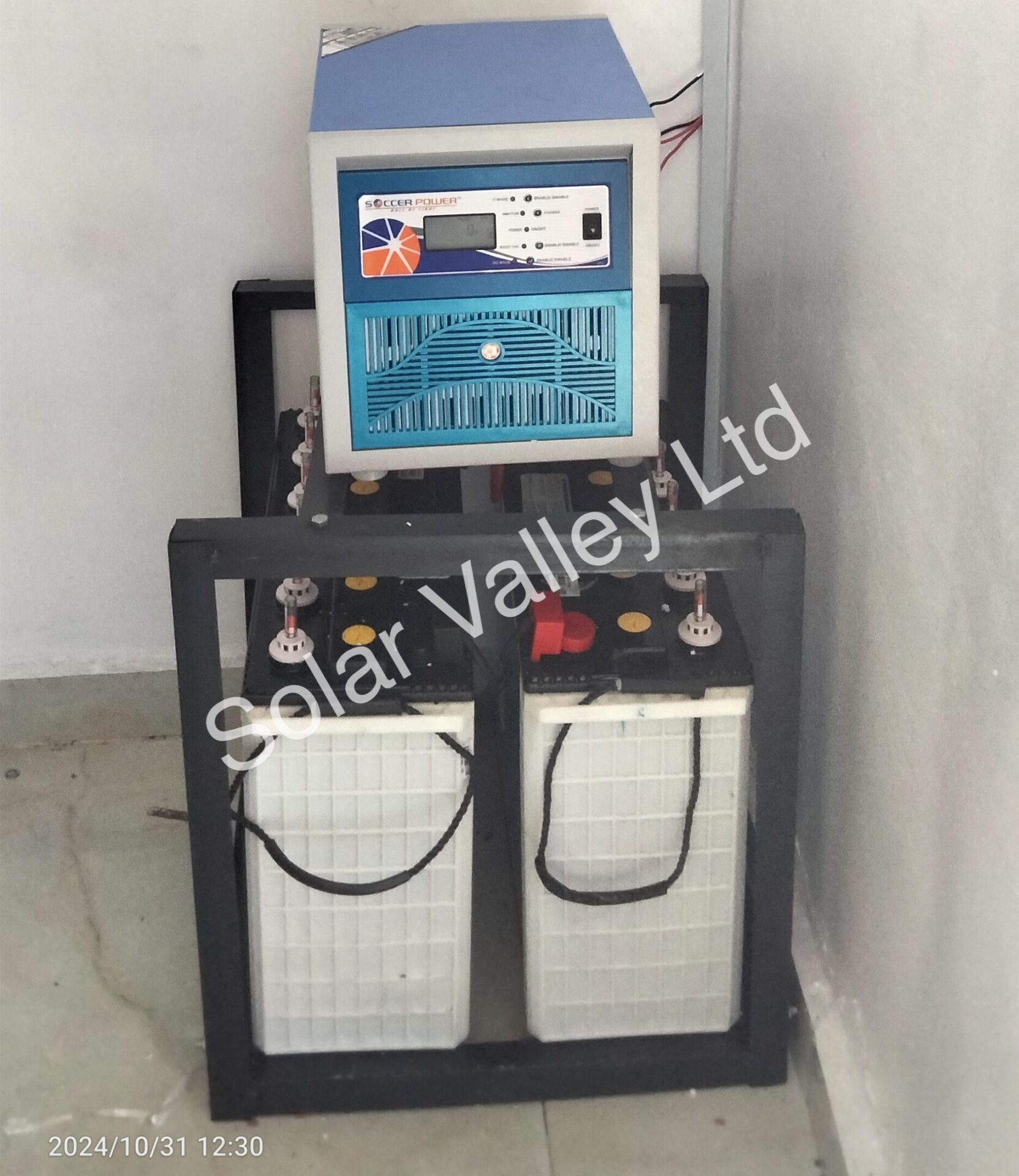

The 2.5kva inverter and solar energy system are suitable for medium energy users, typically found in households and businesses. This system is based on the inverter.
![2.5kva-24v-inverter-solar-energy-system-installation-by-solar-valley-limited](https://i0.wp.com/solarvalleyltd.com/wp-content/uploads/2024/06/2.5kva-luminous-front-2.jpg?resize=720%2C997&ssl=1)
The 2.5kva 24-volt inverter and solar energy system can carry lighting systems, TVs, sound systems, computers, fridges/freezers. The mix of what this system size can carry is of course, subject to the maximum output capacity of the inverter.
Although a 2.5kva 24v inverter running on two 12v 220ah batteries can carry a fridge or freezer, it is worth noting that the battery will drain out faster due to the higher energy consumption of the cooling system. It is best to have these on a higher system size like the 3.5kva or 4kva 48v system which is naturally mated to four batteries.
A 24v inverter can be connected to four batteries (multiples of 2 batteries). However, it would take double the usual time to charge those batteries to full capacity because the inverter’s charging current is optimally designed for two batteries.
How long the 2.5kva system will last is a function of the battery and the load being drawn out from it.
The size and number of solar panels for this type of inverter system depends on the energy needs of the user.
A PWM solar charge controller can be used for this system size, but it cannot be compared to the fast charging abilities of the MPPT solar charge controller.
Still in need of more information? Please contact Solar Valley Ltd now for a review and quote.
